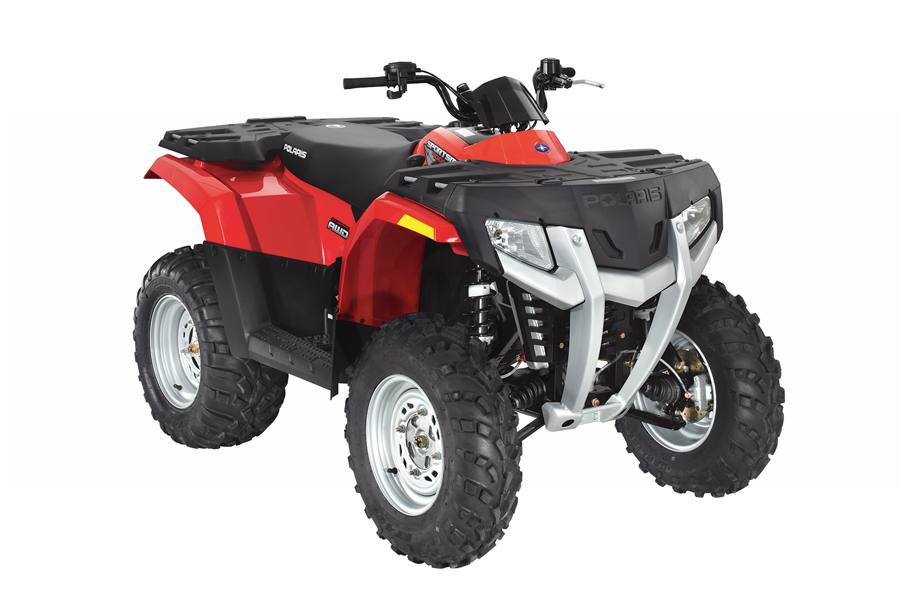

2009 Polaris Industries Sportsman® 400 H.O.
Request a Quote Financing Calculator Request a Brochure Financing Form
Request a Quote Financing Calculator Request a Brochure Financing Form
  • OEM Overview
  • Specifications
  • Compare Models
  • Current Promotions

Overview

 Print Brochure

Mid-Size ATVs with Full Size Features. You won't find a better ATV in the 400 class. It has all the features that made Sportsman® the world's best-selling automatic ATV, including IRS and On-Demand True AWD.

  • On-Demand AWD: The Polaris exclusive AWD automatically engages all wheels when you need more forward traction and reverts back to 2WD when you do not.
  • Storage: Integrated deck and storage compartment lets you carry gear on top while keeping you more precious cargo inside, out or harm's way.
  • Independent Rear Suspension (IRS): The heart of what makes a Sportsman a Sportsman. The rock-solid, proven design minimizes body roll and keeps the ride smooth.
  • Instrumentation: Digital fuel gauge, speedometer, odomter, tripometer, and hour meter keep you ATV's vital information just a glance away
  • Liquid-Cooled 400 cc Engine: Liquid-cooled 400 cc High output (HO) engine for more punch
Engine
  • Engine Type: 4-Stroke
  • Displacement: 455 cc
  • Carburetation: 34mm CV Mikuni
  • Cooling Type: Liquid
  • Starting Type: Electric
Drivetrain
  • Final Drive: Shaft
  • Transmission: F/N/R
  • Drive System: Automatic PVT, 2WD/AWD
  • Engine Braking System: Standard
  • Active Descent Control: N/A
Suspension
  • Front Suspension: MacPherson Strut with 7" / 17.8 cm travel, w/adjustable Preload
  • Rear Suspension: Fully Independent, progressive rate with anti-roll bar, 8" / 20.3 cm travel with adjustable Preload
Brakes
  • Front Brake: Single Lever Hydraulic disc
  • Rear Brake: Hydraulic rear foot brake
Tires/Wheels
  • Front Tires: 24 x 8-12; 489
  • Rear Tires: 24 x 11-12; 489
  • Wheels: Stamped Steel
Dimensions
  • Wheelbase: 46 in. / 116.8 cm
  • Dry Weight: 598 lbs. / 271 kg
  • Length: 72 in. / 182.9 cm
  • Width: 45 in. / 114.3 cm
  • Height: 45.5 in. / 115.6 cm
  • Seat Height: 33 in. / 83.8 cm
Capacities
  • Fuel Capacity: 4.5 gal / 17 l
  • Front Rack/Box Capacity: 70 lbs. / 31.8 kg
  • Rear Rack Capacity: 100 lbs. / 45.4 kg
  • Hitch/Type: Std / Receiver
  • Hitch Towing Capacity: 750 lbs. / 340.2 kg
Instrumentation
  • Digital Gauge
  • Speedometer
  • Odometer
  • Tripmeter
  • Hourmeter
  • N/R Lights
  • Fuel Gauge
Colors
  • Sage Green
  • Indy Red
  • Mossy Oak® Break-Up®

Specifications

Engine
Engine Type 4-Stroke
Displacement 455 cc
Cylinders Twin
Engine Cooling Liquid
Fuel System 34 mm CV Mikuni
Starting System Electric
Chassis
Front Suspension MacPherson Strut w/adjustable Preload
Front Travel 7 in. (17.8 cm)
Front Brake Type Single Lever Hydraulic 4 wheel disc
Front Tires 24 x 8-12; 489
Rear Travel 8 in. (20.3 cm)
Rear Suspension Fully Independent, progressive rate with anti-roll bar with adjustable Preload
Rear Brake Type Hydraulic rear foot brake
Rear Tires 24 x 11-12; 489
Dimensions/Capacities
Dry Weight 598 lbs. (271 kg)
Front Rack Capacity 70 lbs. (31.8 kg)
Rear Rack Capacity 100 lbs. (45.4 kg)
Towing Capacity 750 lbs. (340.2 kg)
Fuel Capacity 4.5 gal (17 l)
Ground Clearance 9 in. (22.9 cm)
Machine Dimensions (LxWxH) 72 x 45 x 45.5 in. (182.9 x 114.3 x 115.6 cm)
Wheelbase 46 in. (116.8 cm)
Drive Train
Drive Train Automatic PVT, 2WD/AWD
Final Drive Shaft
Transmission F/N/R
General
Speedometer Standard
Odometer Standard
Colors Sage Green, Indy Red, Mossy Oak® Break-Up®

Compare Models

 Print








Year 2009
Manufacturer Polaris Industries
Model Sportsman® 400 H.O.
Style Off Road
MSRP* $5,699.00
Chassis
Front Suspension MacPherson Strut w/adjustable Preload
Front Travel 7 in. (17.8 cm)
Front Brake Type Single Lever Hydraulic 4 wheel disc
Front Tires 24 x 8-12; 489
Rear Suspension Fully Independent, progressive rate with anti-roll bar with adjustable Preload
Rear Travel 8 in. (20.3 cm)
Rear Brake Type Hydraulic rear foot brake
Rear Tires 24 x 11-12; 489
Frame
Dimensions/Capacities
Dry Weight 598 lbs. (271 kg)
Front Rack Capacity 70 lbs. (31.8 kg)
Rear Rack Capacity 100 lbs. (45.4 kg)
Towing Capacity 750 lbs. (340.2 kg)
Fuel Capacity 4.5 gal (17 l)
Ground Clearance 9 in. (22.9 cm)
Machine Dimensions (LxWxH) 72 x 45 x 45.5 in. (182.9 x 114.3 x 115.6 cm)
Wheelbase 46 in. (116.8 cm)
Drive Train
Drive Train Automatic PVT, 2WD/AWD
Final Drive Shaft
Transmission F/N/R
Engine
Engine Type 4-Stroke
Displacement 455 cc
Bore x Stroke
Cylinders Twin
Engine Cooling Liquid
Fuel System 34 mm CV Mikuni
Starting System Electric
Alternator
General
Speedometer Standard
Tachometer
Odometer Standard
Lighting
Colors Sage Green, Indy Red, Mossy Oak® Break-Up®
